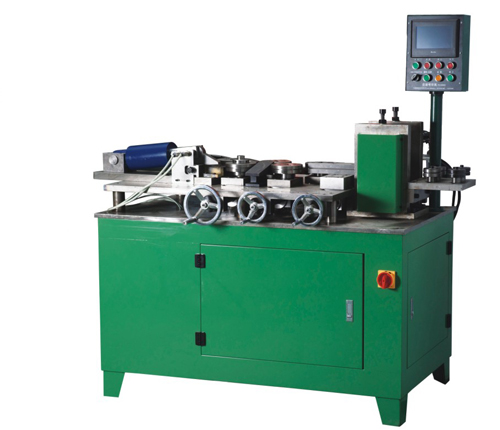

Bending Ring width:6mm--20mm, ring size:120-1000mm; PLC touch screen setting length control, Automatic cutting.
Specification as following: | ||
STYLE | KXT E2000D-2 | KXT E1000D-2 |
Bending Ring thickness | 2mm, 3mm, 4mm | 2mm, 3mm, 4mm |
Bending Ring width | 6mm--60mm | 6mm--20mm |
Maximum ring OD | 3000mm | 1000mm |
Minimum ring ID | 200mm | 120mm |
Total power | 6kw | 6kw |
Servo motor power | 3kw | 3kw |
Main motor power | 2.2kw | 2.2kw |
Power supply voltage | 380V/220V, 3phases, for option | 380V/220V, 3phases, for option |
linear speed | 0-200mm/s | 0-200mm/s |
PLC | xinjie | xinjie |
Production rate | 5s/pc for ASME8"150LB | 2.5s/pc for ASME8"150LB |
Machine measurement | 1500*1300*1580mm | 1480*1300*1600mm |
Machine net weight | 800kg | 750kg |
