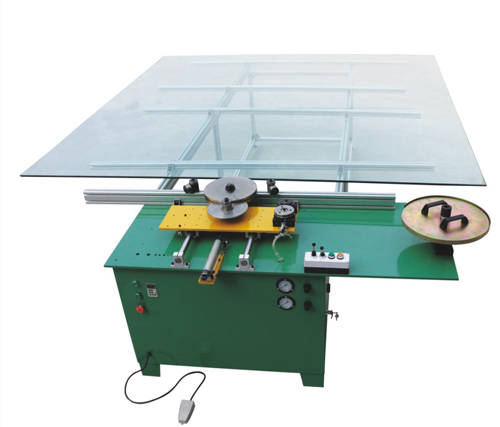

For big size spiral wound gasket ID 300mm to 2500 or 3200mm with or without inner ring. Gasket thickness 4.5mm (also for 3.2mm, 6.4mm and 7.2mm by changing roller parts, V or W shape winding)
Specification as following: | ||
STYLE | KXT E2500B Manual winder | KXT E2500C Semi-automatic winder |
Producing ability | SWG with or without IR | SWG with or without IR |
SWG thickness | 4.5mm (also suitable for 3.2mm, 6.4mm and 7.2mm after changing roller parts, V shape winding or W shape winding for option) | 4.5mm (also suitable for 3.2mm,6.4mm and 7.2mm after changing roller parts, V shape winding or W shape winding for option) |
Maximum gasket OD | 2500mm or 3200mm | 2500mm or 3200mm |
Minimum gasket ID | 300mm | 300mm |
Total power | 2.2kw | 8kw |
Spindle motor power | 0.75kw | 0.75kw |
welder power | / | 6kw |
Power supply | 380V/220V for option, 3 phases | 380V/220V for option, 3 phases |
linear speed | 0-800mm/s | 0-800mm/s |
Air compressor | 0.6—0.8 MPA | 0.6—0.8 MPA |
Frequency Converter | 2.2G | 2.2G |
PLC | / | xinjie |
Machine measurement | 3400*2600*980mm | 3400*2600*980mm |
Machine net weight | 500kg | 550kg |
