Products

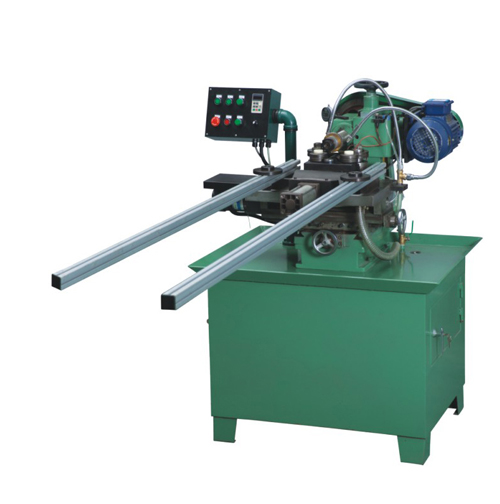

Kammprofile Gasket Machine

Kammprofile pitch both 1.0 and 1.5mm available. HSS saw blades and Alloy blade in set for option.


Send Inquiry


Description
Specification as following:
STYLE KXT E1300
Kammprofile gasket machine
Gasket thickness 3 -- 4mm
Gasket width 10--50mm
Maximum gasket OD 4000mm
Minimum gasket ID 280mm
type of tooth 1.5mm or 1.0mm pitch tooth, or wave tooth
Total power 4kw
Spindle motor power 1.5kw
Spindle speed 0--1200 rpm
Feed motor power 0.4kw
Feed linear speed 0--20mm/s
Frequency Converter 2.2G 0.4G
Power supply voltage 380V/220V, 3phases, for option
Air compressor 0.6-0.8 MPA
Machine measurement 800*1000*1360mm
Machine net weight 500kg
