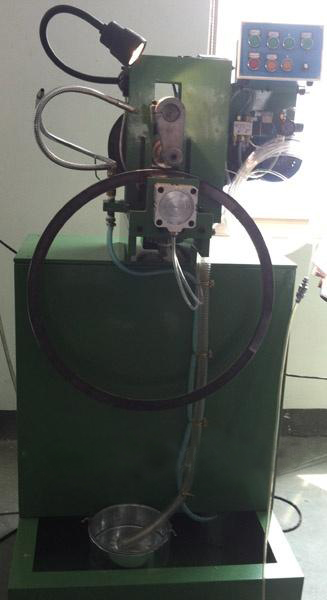

Angling Machine For SWG Inner Ring
Milling the outer edge of spiral wound gasket inner ring into V shape
| Specification as following:： | |
| STYLE |
KXT E2000N Angling machine for SWG Inner ring |
| Grooving ring thickness | 2-4mm |
| Maximum ring OD | 1000mm |
| Minimum ring ID | 250mm |
| Total power | 2.2kw |
| Spindle motor power | 0.55kw |
| Feed moter power | 0.04kw |
| Power supply | 380V/220V for option, 3 phases |
| linear speed | 0-25 mm/s |
| Air compressore | 0.6-0.8Mpa |
| Machine measurement | 950*900*2000mm |
| Machine net weight | 300kg |
